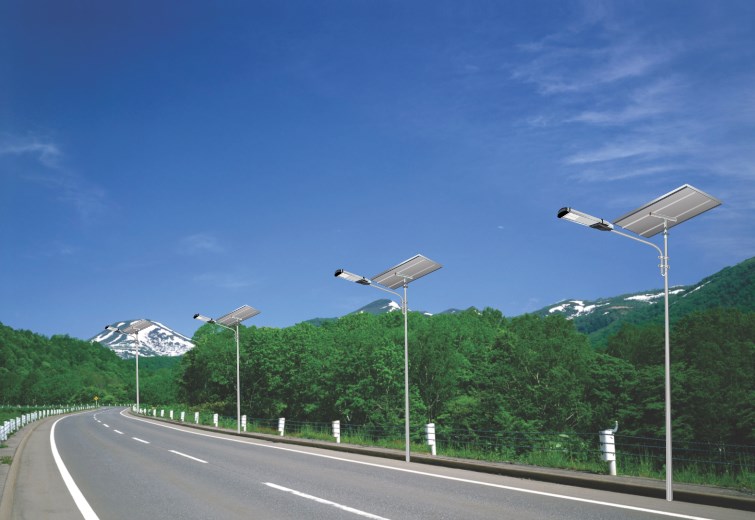

Jual smart PJU tenaga Surya 40 watt murah di surabaya - PABRIK SOLAR PANEL HP. 081803215590 (WA)

Jual smart PJU tenaga Surya 40 watt murah di surabaya



Spesifikasi:

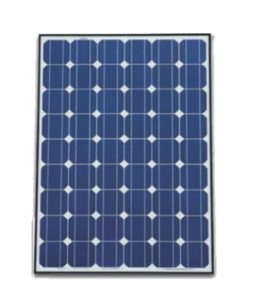

Solar Cell

Jual solar cell murah surabaya

A. Electrical performance at Standart Test Conditions STC
– Jenis Solar Modul : Polycrystalline
– Power Output (Pmax) : 50 WP
– Open Circuit Voltage (Voc) : 21,60 V
– Short Circuit Current (Isc) : 3,10 A
– Voltage at Pmax (Vmpp) : 17,2 V
– Current at Pmax (Impp) : 2,91 A
– Maximum System Volatge : 1,000 V
– Module efficienty : 14,74 %
– Power output tolerance : +/- 3 %
– Standart Test Conditions : 1000W/m2 irridiance
  : 25’C Cell temperature
  : AM 1,5g spectrum according to EN 60904-3
B. Thermal Characteristics
– Nominal Operating cell temperature : 47 +/- 2 ‘C
– Temperature coeffient of Pmax : -0,488%’C
– Temperature coeffient of Vmax : -0,346%’C
– Temperature coeffient of Isc : +0,065%/’C
C. Operating Condition
– Max. System voltage : 1000Vdc
– Bypass Diodes : 2 pcs 10A
– Operating temperature range : -40″C to 85″C
 D. Construction Materials
– Frame  : Anodized Aluminum Alloy/Silver or black/silicone
– front cover (material/thicness) : Tempered glass/3,2mm
– Cell (quantity/material/dimensions) : 36 /Policrystalline silicon/ 156mm*52mm
– Encapsulant (material) : Ethylene vinyl acetate (EVA)
– Juction Box (protection degree) : >/ Ip65
– Weight : 7Kg
– Size : 550 x 660 x 35 mm
– Masa Kerja : 20 ( Dua puluh ) Tahun
– Garansi : 5 Tahun

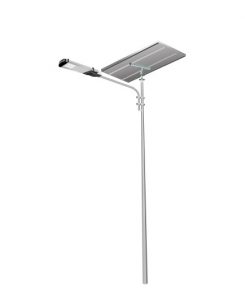

Tiang PJUTS Single Arm

Jual tiang PJU Oktagonal surabaya

Tipe Tiang :  Oktadiogonal (Hotdip)
Bahan :  Besi Galvanis
Tinggi tiang :  7 Meter
Ketebalan Tiang :  3 mm
Diameter Tiang :  ø 5″
Diameter Lengan Lampu :  ø 2″
Penahan Lengan Lampu :  Clamp Beugel 5″x 2″
Finising : HOT-DIP
Sambungan : System Slip Join
Dilengkapi anti panjat 40-45 cm
Detail Pondasi dan Plat Dudukan :
Plat Besi :  13 mm
Beton Cor :  1 : 2 : 3
Angkur Besi :  4 x ø16
Dimensi Pondasi Beton :  40 x 40 x 90 cm
Tulangan Pondasi :  Diameter 10 mm
Ukuran Dudukan Tiang :  30 x 30 cm
Kelengkapan :  Mur and Baut
Kedalaman Anchor :  50 cm
Penyangga modul surya
Bahan : Besi siku
Finising : HOT-DIP
Ukuran : 3×3 cm

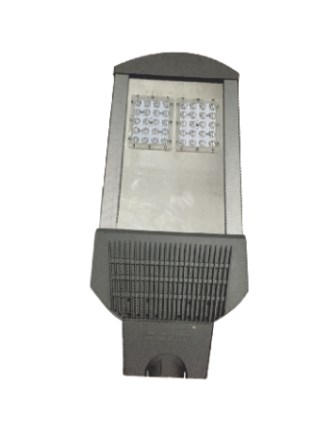

Lampu Jalan LED

Jual lampu jalan led Untuk PJU 40 watt

Spesifikasi:

Brand name : ESKRI
Item Type : Street Lights
Model : EJC-003-40W
Power : 40 W
Bahan Rumah lampu : ADC 12 Die Casting Aluminium Alloy
IP : 65
System lampu : Modular sistim
Angle Beam : 120 – 140 (Adjustable)
Suhu warna : Putih (6500 – 7500 Kelvin)
Jenis sumber cahaya : LED High power 40 x 1 Watt
Luminasi cahaya : 6000 – 6400 Lumen
Temperature  kerja : -30 C -+ 55 C
Lumen /Watt : 150 – 160 Lumen / Watt
Tegangan Kerja nominal : 12 Volt DC
Masa pakai : 50.000 Jam
Garansi : 5 tahun

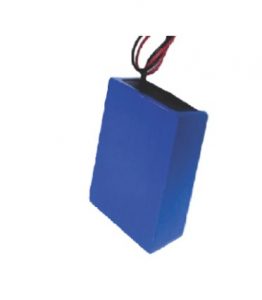

Baterai Lithiun:

Jual baterai lithium murah surabaya

Spesifikasi:

Brand name : Optimum nano
Type Baterai : LiFePo4 GC – 1260
Nominal Capacity : 60Ah
Cycle life : Cycle life 2000 times
Nominal Voltage : 12.8V
Cell Configuration : 4S12P
Discharge Cut- off Voltage : 10V
Total Cell Quantity : 48 Pcs
Charge Cut- off Voltage : 14.6V
RecommendCharge Current : ≤12A (0.2C)
Weight(Approx,includingcase) : 8.16 kg
RecommendContinuous Discharge Current : ≤60A (1C)
Charge Temperature Range :  0℃~ 45℃
Maxconstantdischarge current :  150A (2.5C)
Discharge Temperature Range : -20℃~ 60℃
Peak Discharge (Max. 10 sec.Duration) :  300A (5C)
Stored Temperatured : 10 – 35 C

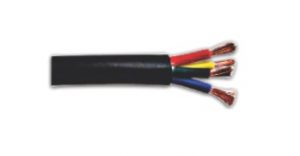

Kabel

Spesifikasi:

Jenis Kabel :  NYYHY
Ukuran Kabel :  2 x 2.50 mm²
Sambungan : Plug & Play

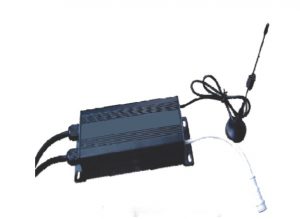

LIGHT  CONTROL  MANAGEMENT SYSTEM

Light control management system

Spesifikasi:

Model : GC – UL
Rated Charge Current : 10A
Rated Load Current : 30MA-2 7A (adjustable)
Rated Load Voltage : Battery voltage-60V (Automatically set-up)
LED Constant Current Efficiency : >92.8% (typical 94.5%) 24V, System is available for 95.3%
System Viltage : 12V ; 24V/12V AUTO
Overload, short circuit protection : 1.25 times the rated current is for 60 seconds,
  1.5 times the rated current is for 5 seconds
  when the overload action.
  More than 3 times the rated cuurent of short circuit protection.
Load loss : Normal mode < 7 mA, power-saving mode <3.5 mA
Charging circuit voltage drop : Not more than 0.26V
Discharge circuit voltage drop : Not more than 0.15V
Over-voltage protection : 17V, X 2/24V ;
Operating temperature : Industrial: -35 C to +55 C (suffix I);
Boosting voltage : 14.6V; x 2/24V; (duration: 55min) (only available for over-discharge)
Equalize voltage : 14.4V; x 2/24V; (duration: 55min)
Float voltage : 13.6V; x 2/24V; (duration: down to charge return voltage operation)
Charge return voltage : 13.2V; x 2/24V;
Temperature Compensation : – 4.5mv/C/2V (bosting, equalize charge, floating charge, charge return voltage compensation)
Under voltage warning voltage : 12.0V; x 2/24V;
Over-discharge voltage : 11.1V ; x 2/24V;
Over-discharge voltage return : 12.6V; x 2/24V;
Control : PWM Charge Mode
GSM : GSM/GPRS:, Quad-band 850/900/1800/1900Mhz
G-sensor : Build in For Sleep/wake up and hars break
Gsm antena : Eksternal
PIN OI Interface : 4 Digital Input
  : 4 Digital Input
  : 4 Analog Input
  : 1 Panic Button
  : 2 1-Wire for iButton or temperature probe
Sim Card slot : 1 SLOT’
Micro Usb Slot : 1 SLOT’
Garansi : 5 Tahun
Temperature sensor : 0 C – 100 C Eksternal
Relay : 4 PIN
